Embedded Backend Bridge
STM32, ESP32, Raspberry Pi & Laravel – full embedded-to-backend demo system showcasing real-world IoT architecture.
Project Overview
This project is a full embedded-to-backend demonstration system to demonstrate an IoT device. It combines low-level embedded development, industrial communication buses, a Linux-based gateway, and a modern web backend (Laravel) into one coherent architecture.
The goal is to demonstrate real-world engineering skills across the full stack:
- Embedded systems development (STM32, ESP32)
- Industrial communication protocols (CAN, I2C, SPI, USB, Ethernet)
- Gateway and edge-device architecture (Raspberry Pi)
- Backend development and data visualization (Laravel)

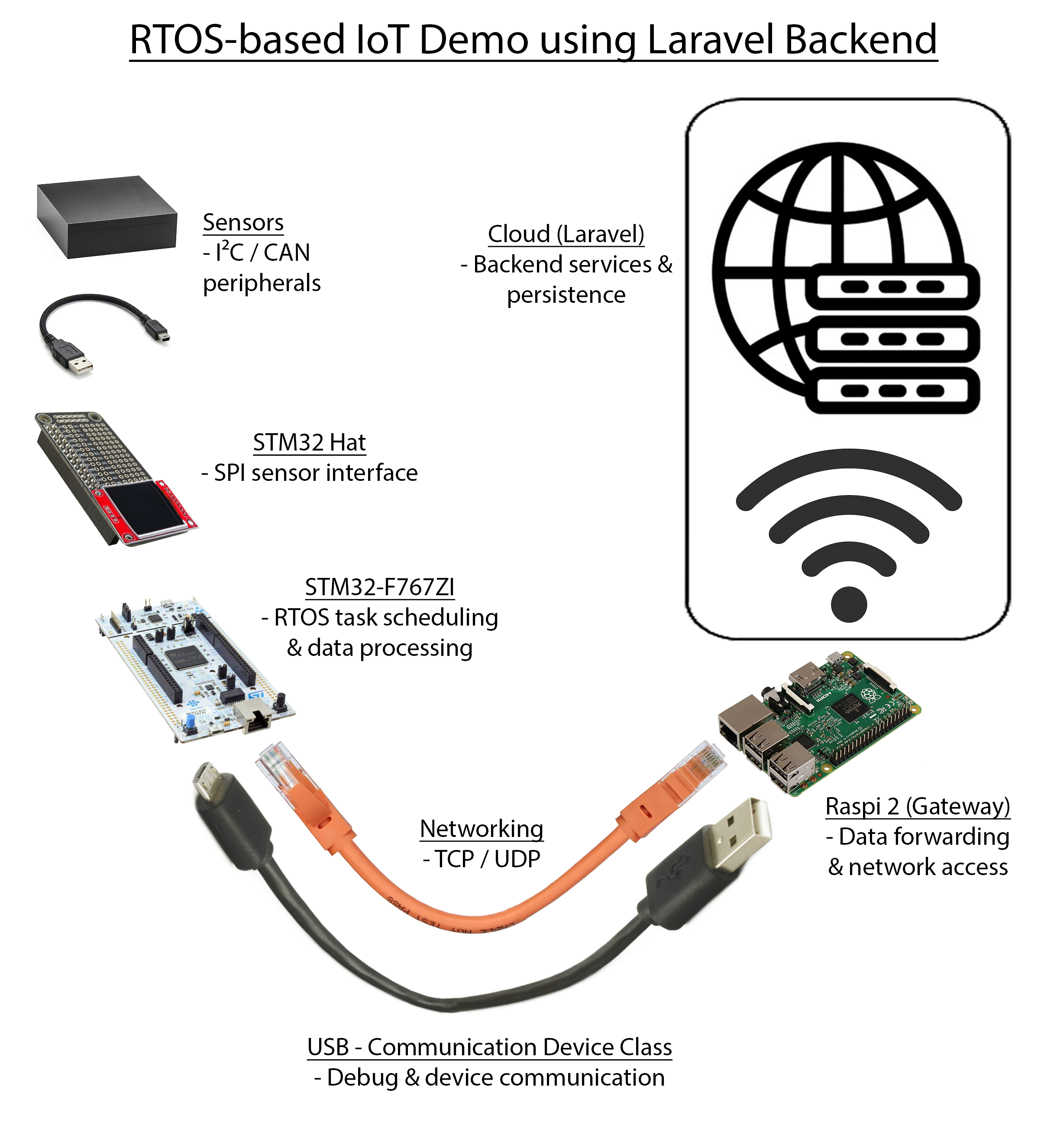

System Architecture

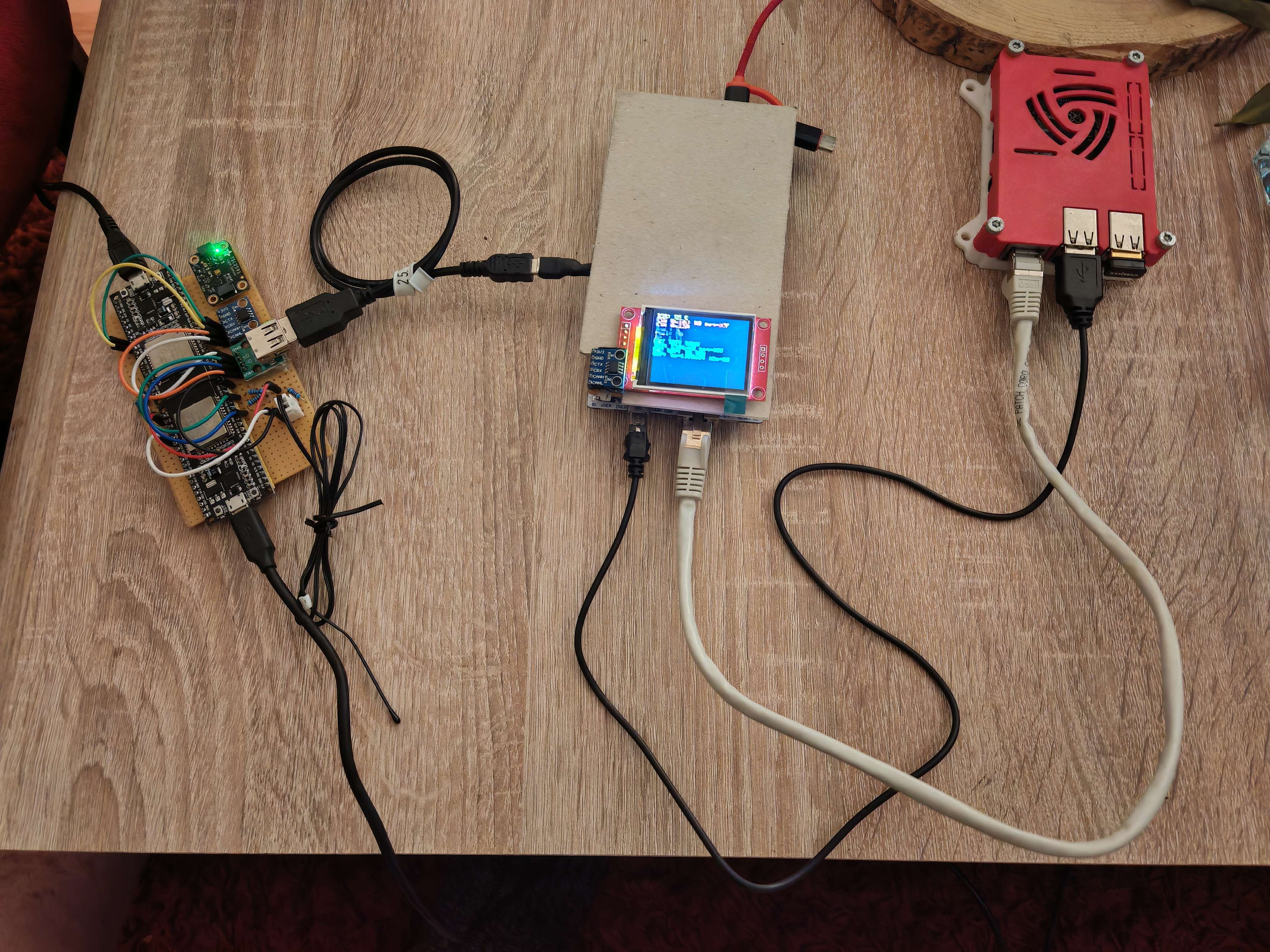

My own build
Hardware Setup
Central Controller
- STM32 NUCLEO-F767ZI – Main system controller
- Central data aggregator and communication hub (selfmade STM32 Hat)
- Ethernet using LwIP TCP/IP stack
- USB CDC (virtual serial interface)
- SPI TFT display
- I2C master
- CAN controller
Slave Devices
ESP32 #1 (CAN Slave)
- Communication via CAN bus
- CAN transceiver: VP230
- Internal I2C light sensor (Adafruit TSL2591)
ESP32 #2 (I2C Slave)
- Communication via I2C
- Connected analog temperature sensor (2-pin motherboard-style sensor)
Gateway (Raspberry Pi 2)
- Ethernet connection to STM32
- Wi-Fi connection to a router
- Forwards collected sensor data to the backend system
Interfaces & Communication
LAN (Ethernet)
STM32 ↔ Raspberry Pi
TCP and UDP communication using LwIP. STM32 acts as an embedded network device.
USB CDC
STM32 ↔ Raspberry Pi
Debugging, logging, and manual data access using builtin CLI.
SPI
STM32 ↔ Selfmade STM32 Hat

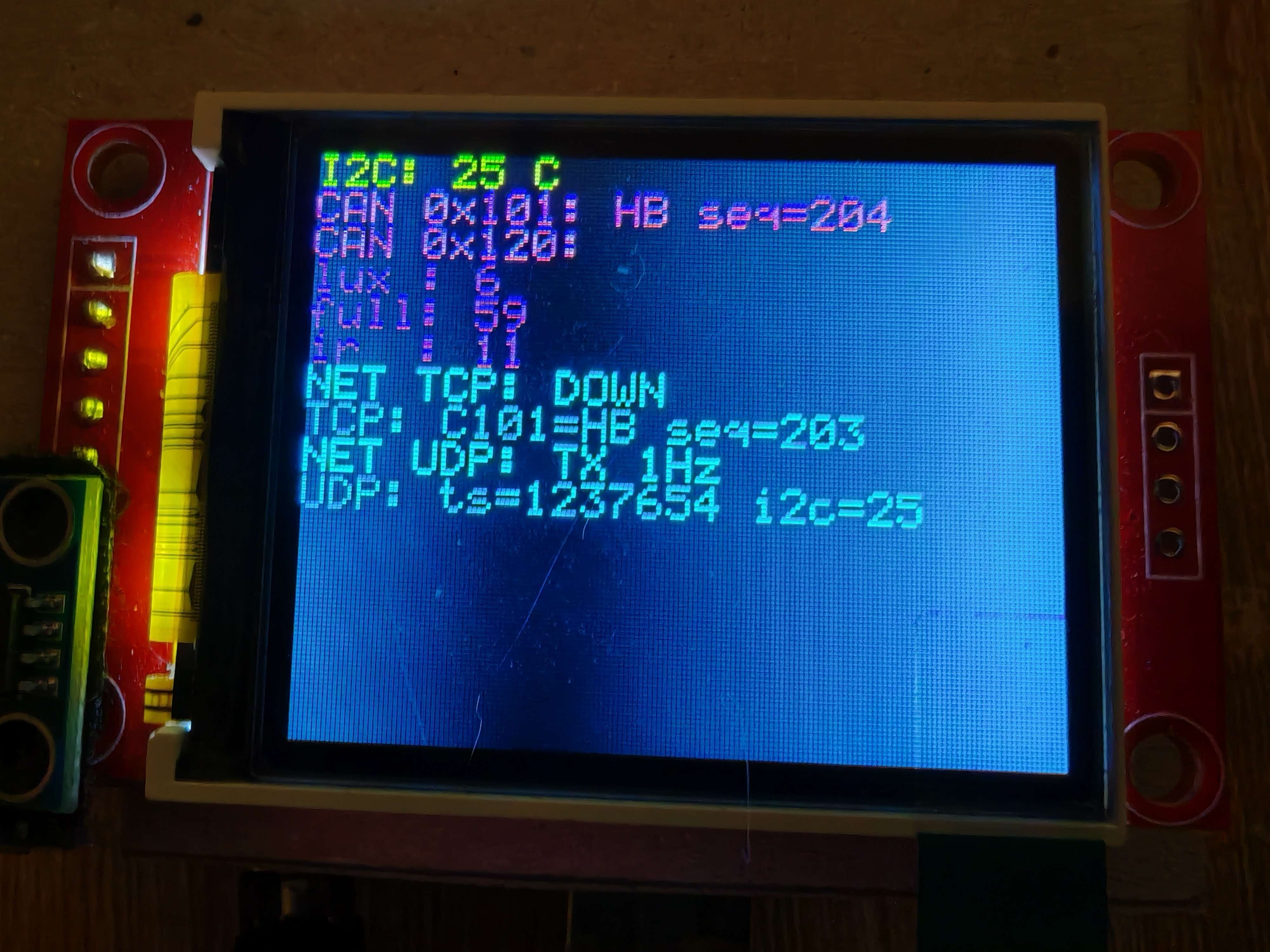

1.8" SPI TFT display with SD card slot ("Red Display"). Local visualization of system status and sensor values.
CAN Bus
STM32 ↔ ESP32 slave
VP230 CAN transceiver. Transmission of light sensor data.
I2C
STM32 ↔ ESP32 slave
Transmission of temperature sensor data.
Electrical Schematic
Software Architecture
Embedded (STM32)
- STM32CubeMX / HAL
- LwIP TCP/IP stack
- USB Device (CDC)
- CAN, I2C, SPI drivers
- TFT display driver
- Central data collection and aggregation logic
ESP32 Slaves
- Arduino Studio
- Sensor integration
- Protocol-compliant communication (CAN / I2C)
Gateway (Raspberry Pi)
- Linux-based data gateway
- Receives data from STM32 via Ethernet or USB
- Forwards structured data to the backend
Backend (Laravel)
- Standalone Laravel project
- Authentication and authorization
- REST API
- Dashboard visualization (Temperature + Light)
- Clear separation between embedded and web layers
Project Goals (Portfolio Focus)
- Professional embedded system design
- Multi-bus communication handling
- Edge-to-backend gateway architectures
- Backend communication to a Laravel backend
- Clean separation of concerns
- System-level thinking from hardware to web UI
Well suited as a reference project for Embedded, IoT, or Backend engineering roles.
